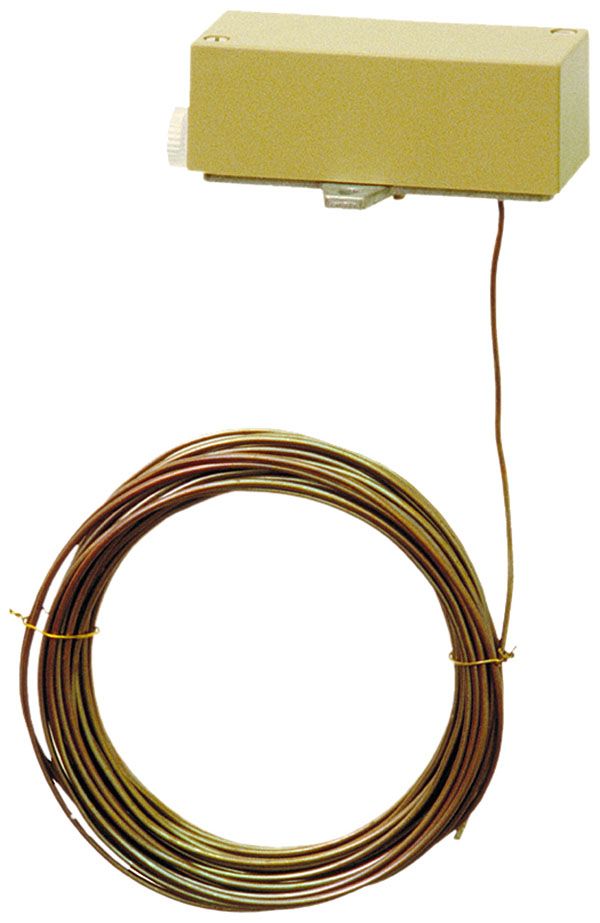

Average-temperature transducer
TMUP
How energy efficiency is improved
Accurate recording of temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Measurement and/or control of average temperature value in air ducts in combination with pneumatic control equipment (Centair).
Properties
Technical description
Accurate recording of temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Measurement and/or control of average temperature value in air ducts in combination with pneumatic control equipment (Centair).
Properties
- Part of the Centair family of systems
- Capillary tube filled with expansion fluid (10 m long)
- Conversion of temperature into a standard 0.2 to 1.0 bar pneumatic signal
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Nozzle/ball system
- Linearity of output signal <2%
Folhas de dados
Instruções de montagem
Outros documentos
Brochuras
TMUP: Average-temperature transducer
pdf : 111 KB
pdf
TMUP 210, 220
pdf : 177 KB
pdf
Centair. The pneumatic universal controller system for air-conditioning and heating systems
pdf : 405 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
